Description

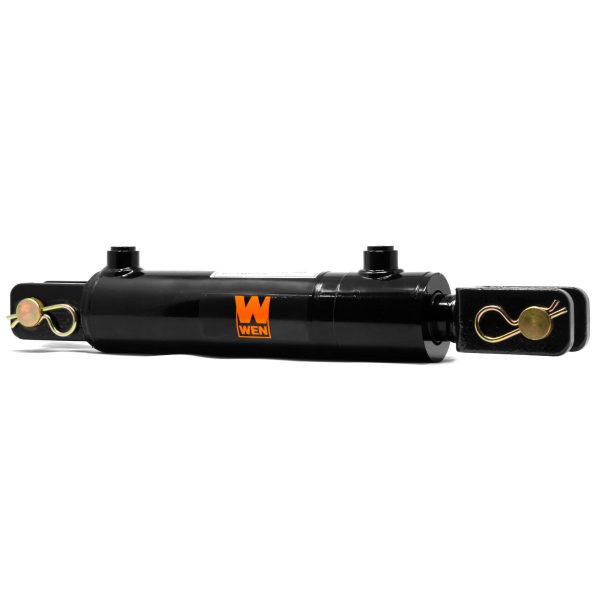

• Double-acting steel-welded design handles pressure up to 3000 PSI
• Features a 2.5-inch bore, a 10-inch stroke, and a 1.5-inch rod diameter
• SAE-8 port (3 4 inch-16UNF) connects easily to your hydraulic hose
• Retracted 20.25-inch cylinder extends out to 30.25 inches in length

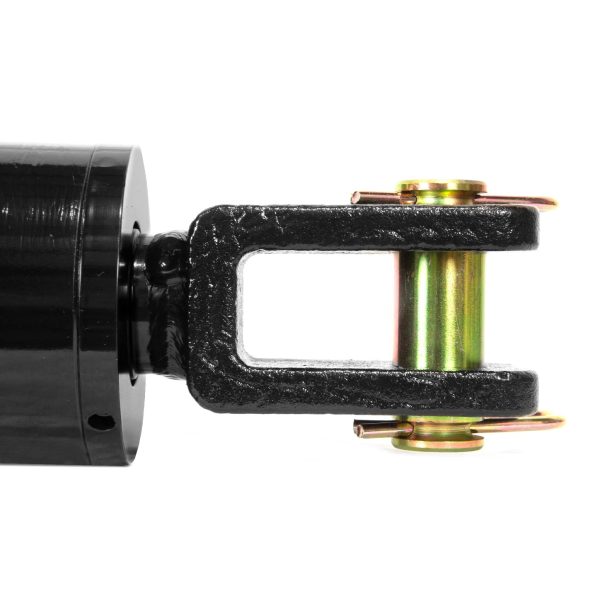

• Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty
• Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting clevis hydraulic cylinder wtihstands operating pressures of up to 3000 PSI. The SAE-8 port (3 4 inch-16UNF) attaches easily to the hydraulic hose of your choice. With a 2.5-inch bore and a 10-inch stroke, this durable cylinder goes from a retracted length of 20.25 inches all the way out to an extended length of 30.25 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1-inch diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year warranty and a friendly customer help line, all to make sure you remember WEN.

  For CA residents, click here for Proposition 65 information

  Additional information

  Title	Individual
