Description

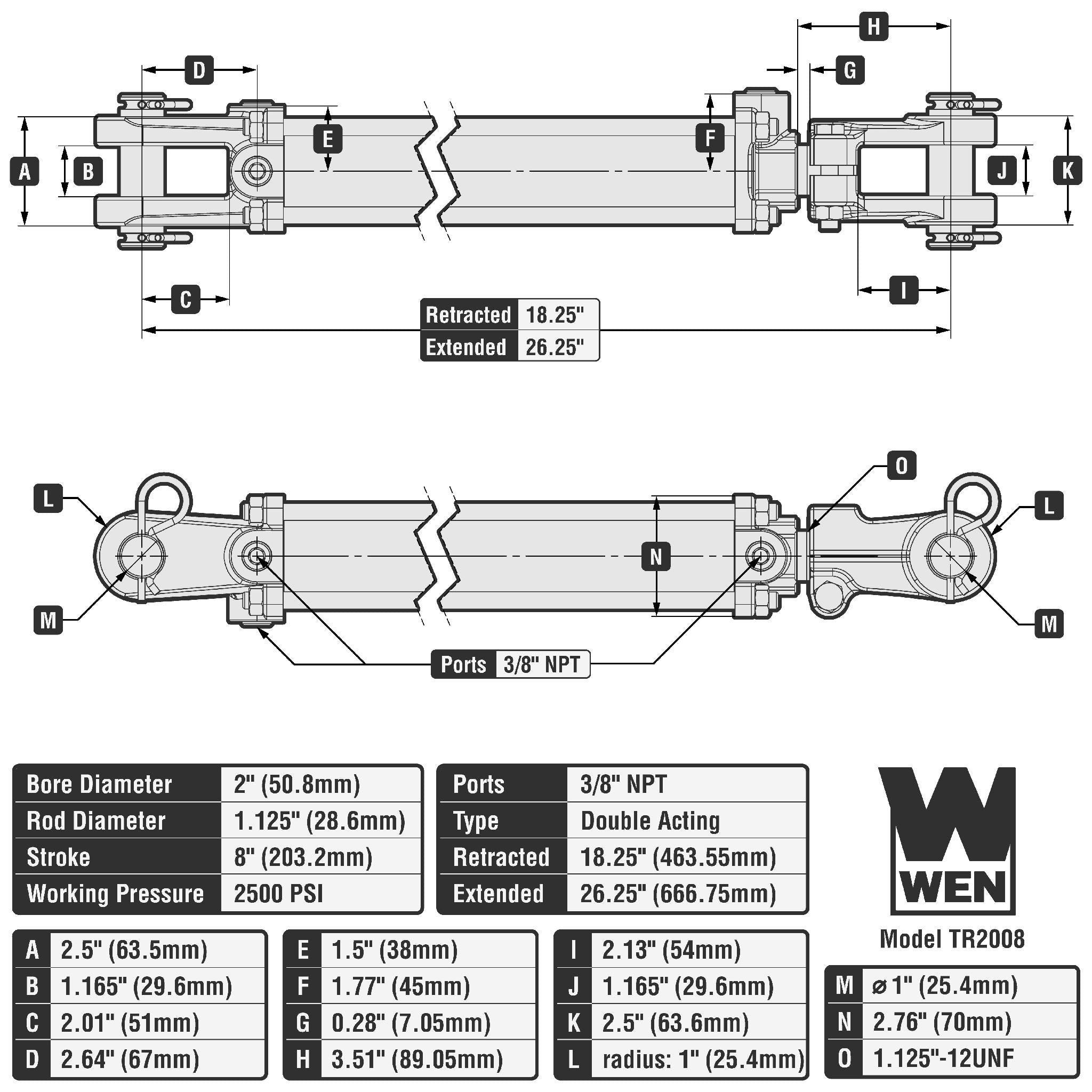

• Double-acting steel-welded design creates pressure up to 2500 PSI
• Features a 2-inch bore, a 8-inch stroke, and a 1.125-inch rod diameter
• 3 8-inch NPT port connects to any standard hydraulic hose
• Retracted 18.25-inch cylinder extends out to 26.25 inches in length

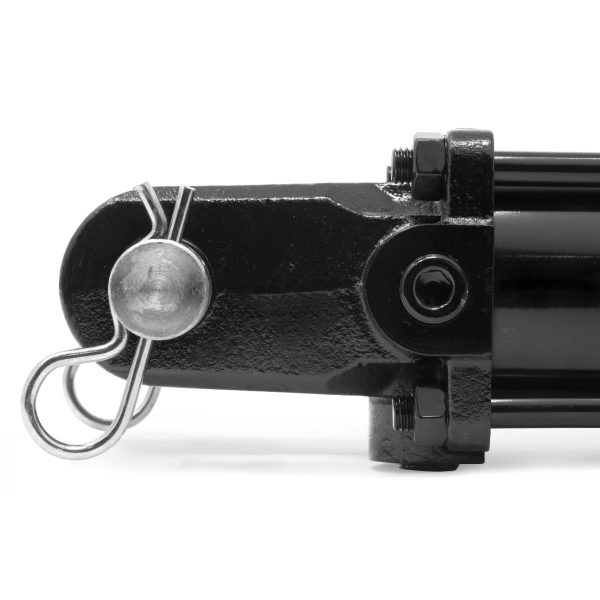

• Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty

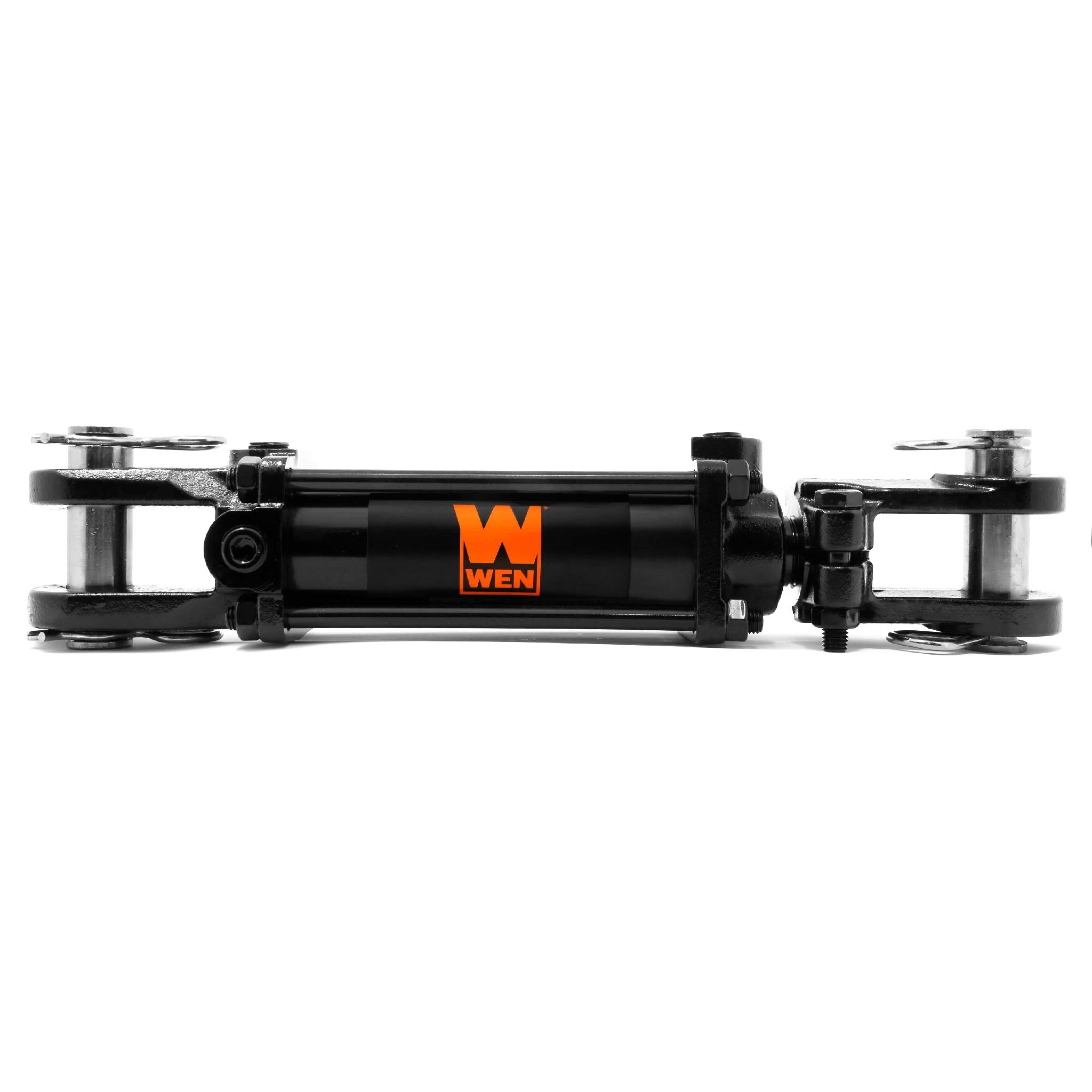

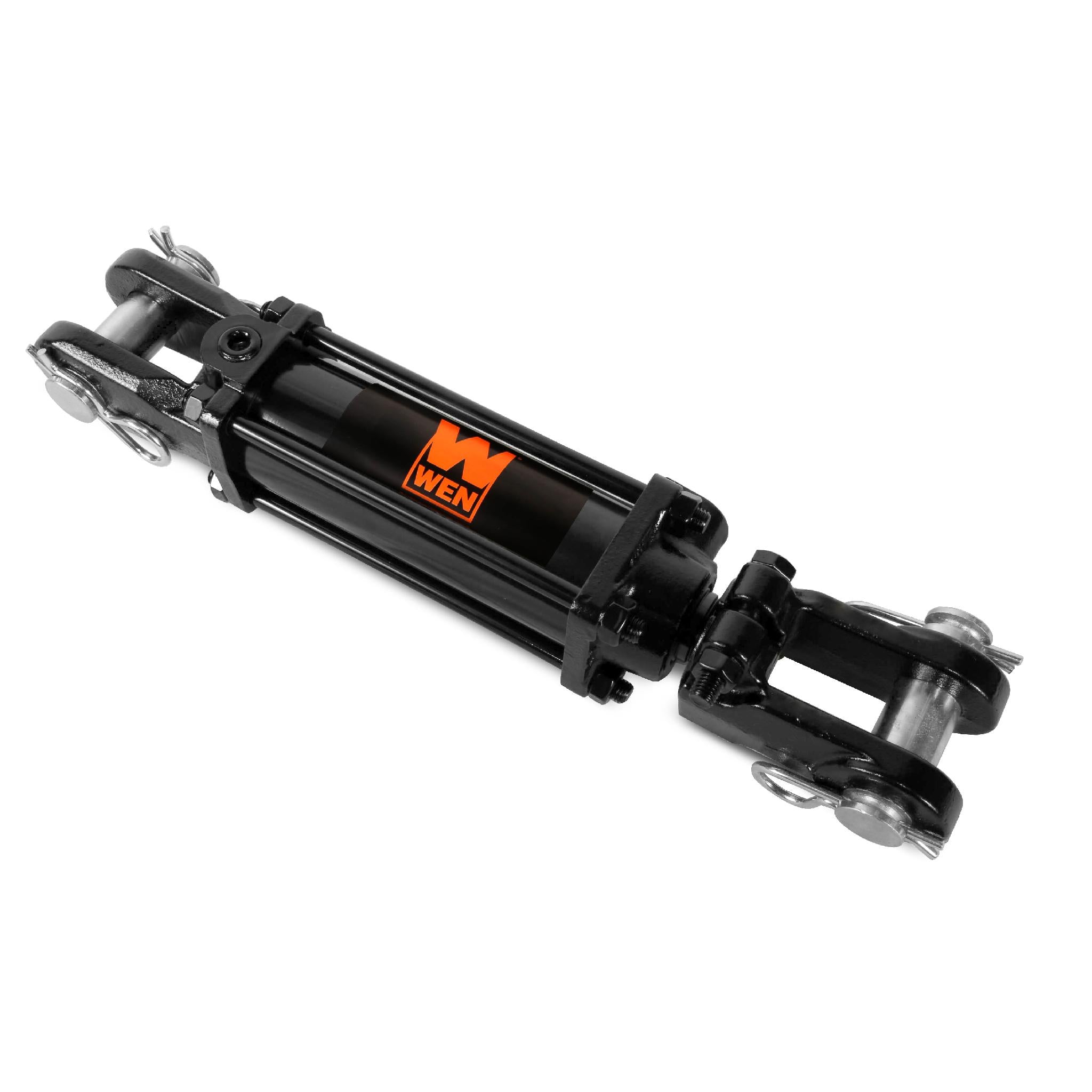

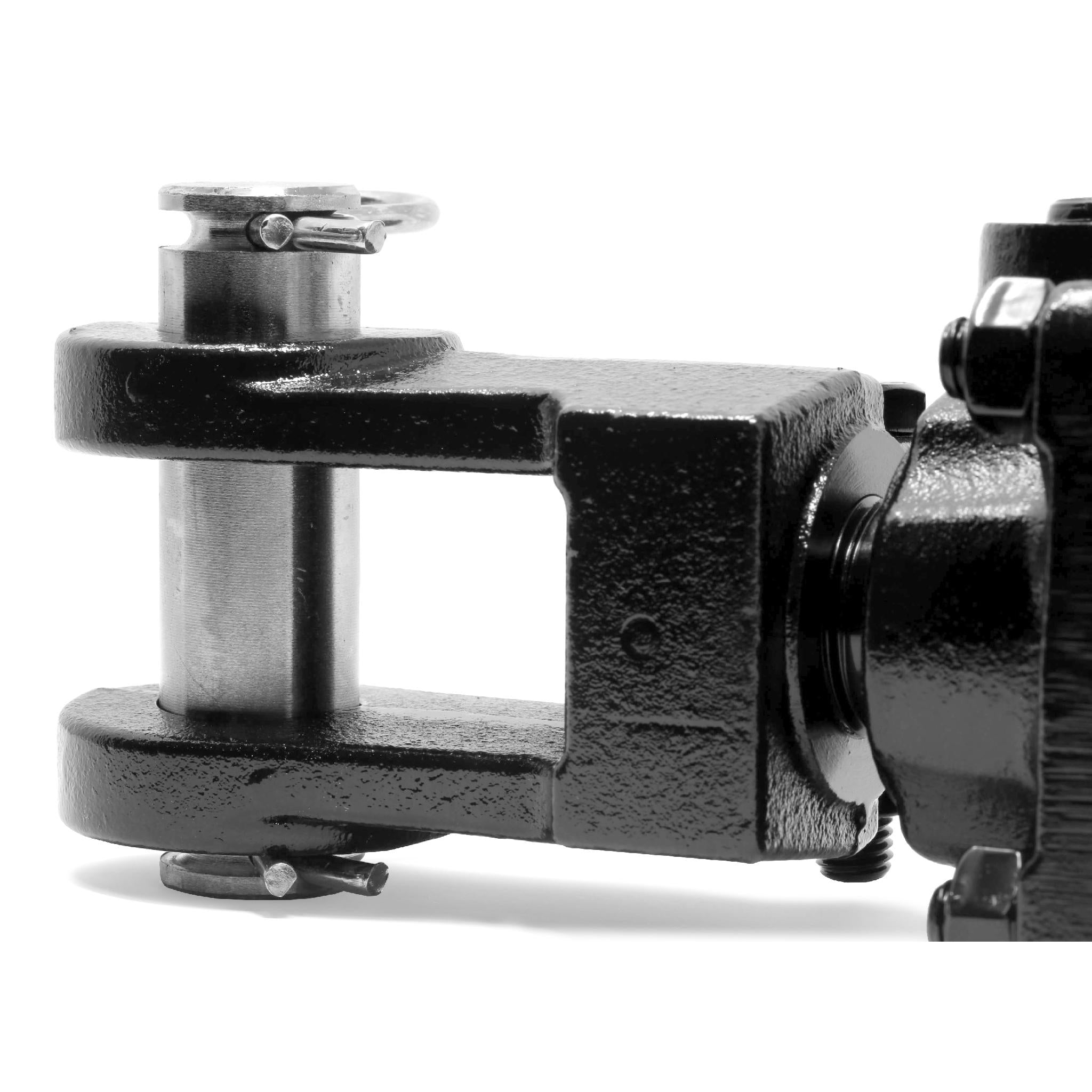

• Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Tie-Rod Hydraulic Cylinder. This double-acting steel-welded tie-rod hydraulic cylinder creates operating pressures of 2500 PSI. The 3 8-inch NPT port size attaches easily to any standard hydraulic hose. With a 2-inch bore and a 8-inch stroke, this durable cylinder goes from a retracted length of 18.25 inches all the way out to an extended length of 26.25 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1-inch diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, an ASTM A536 65-45-12 ductile iron piston, and ductile iron female clevises with grade 8 clamp nuts. And because it’s a WEN product, your tie rod cylinder comes backed by a two-year warranty, a stocked inventory of replacement parts and a two-year warranty, all to make sure you remember WEN.

  For CA residents, click here for Proposition 65 information

  Additional information

  Title	Individual

  Related products

  50%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

  WEN PC1430 50-Amp NEMA 14-50P Plug to 30-Amp NEMA TT-30R RV-Ready Extension Cord Adapter, 1 Foot Online Hot Sale

  $21.17 Original price was: $21.17.$10.59Current price is: $10.59.

  50%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

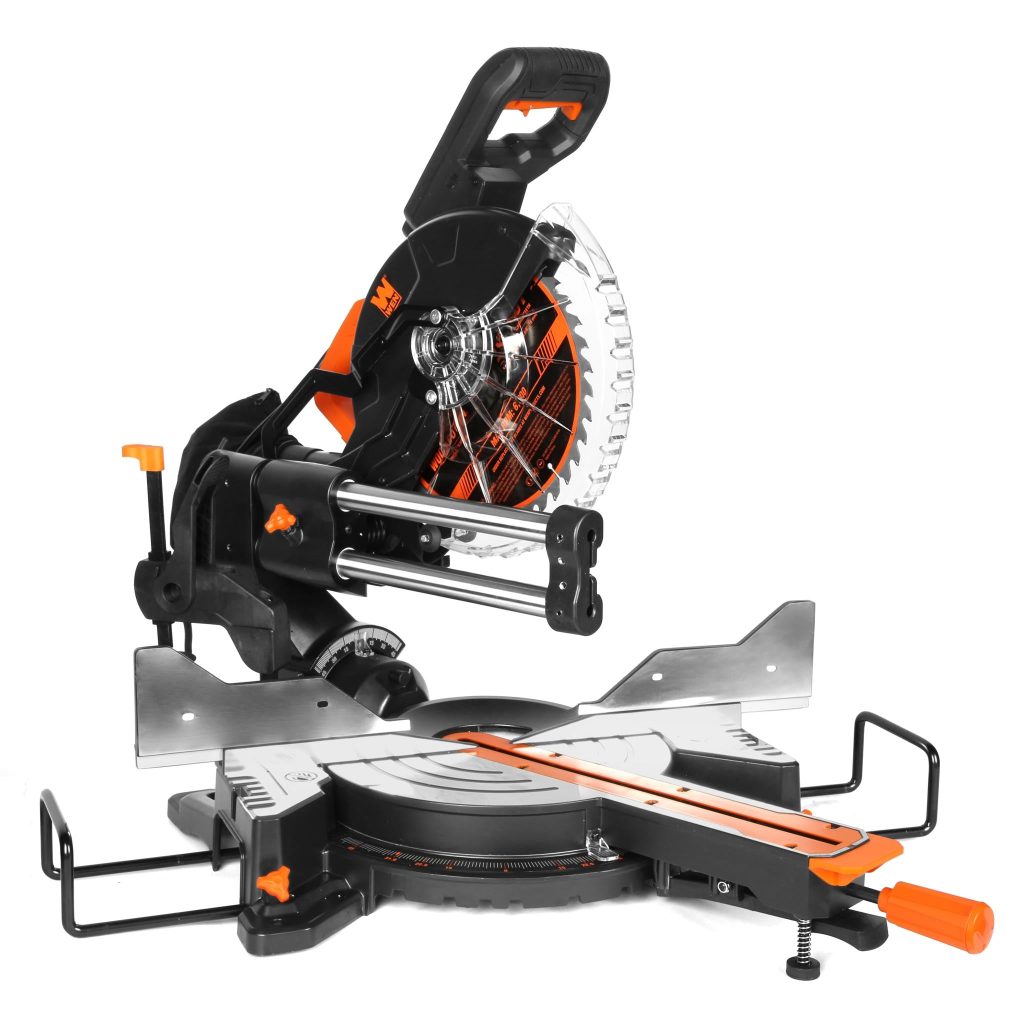

  WEN MM1015 15-Amp 10-Inch Dual Bevel Sliding Compound Miter Saw with LED Cutline For Sale

  $261.58 Original price was: $261.58.$130.79Current price is: $130.79.

  50%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

  WEN GNA650 240V 50-Amp 12000-Watt Generator to Appliance Adapter, NEMA 14-50P 4-Prong Plug to NEMA 6-50R 3-Prong Appliance Outlet For Sale

  $13.17 Original price was: $13.17.$6.59Current price is: $6.59.

  50%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

  WEN 272406 72-Inch by 40-Inch Heavy Duty Padded Moving Blankets, 6-Pack Online Sale

  $49.99 Original price was: $49.99.$25.00Current price is: $25.00.

  70%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

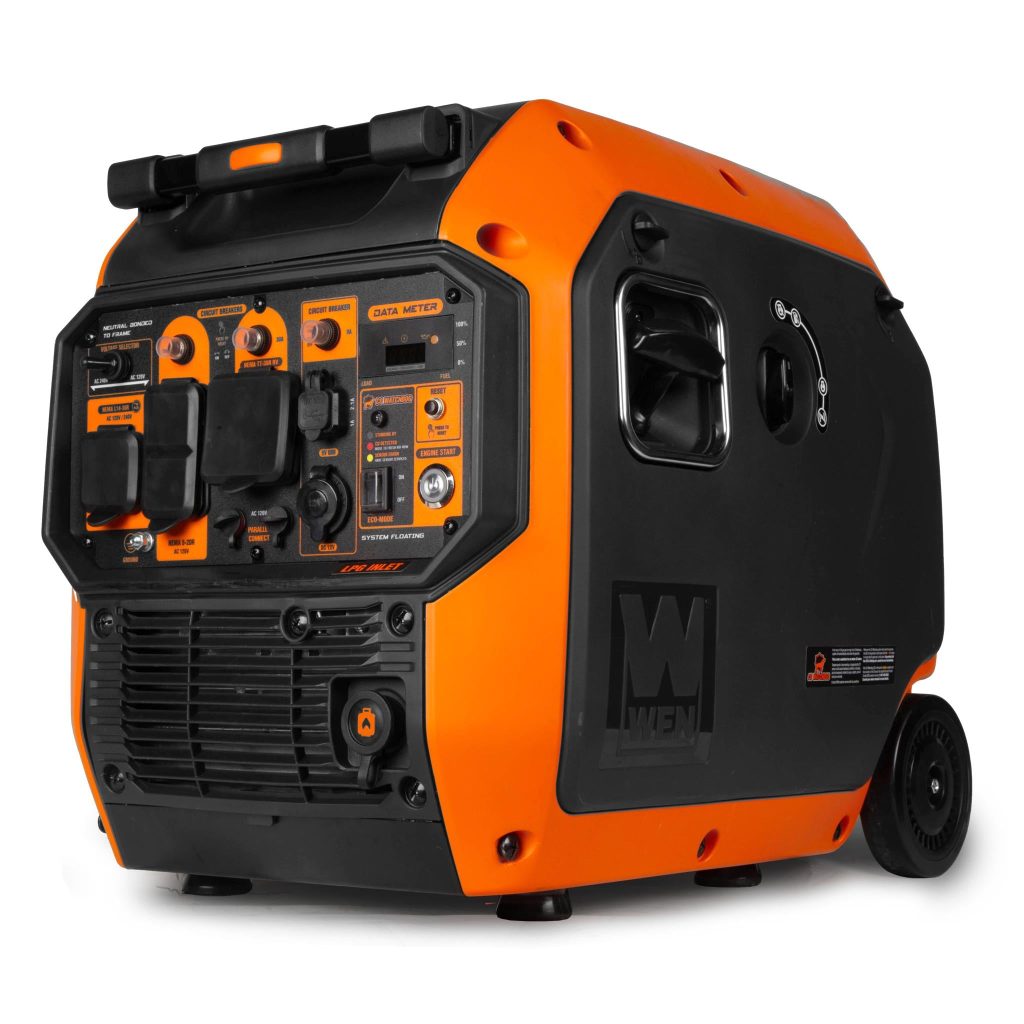

  WEN DF500iX 5000-Watt Dual Fuel 120V 240V RV and EV-Ready Electric Start Portable Inverter Generator with Electric Vehicle Charging Ports Online

  $760.40 Original price was: $760.40.$228.12Current price is: $228.12.

  50%

  Add to wishlist

  Compare



  Select options This product has multiple variants. The options may be chosen on the product page

  Products

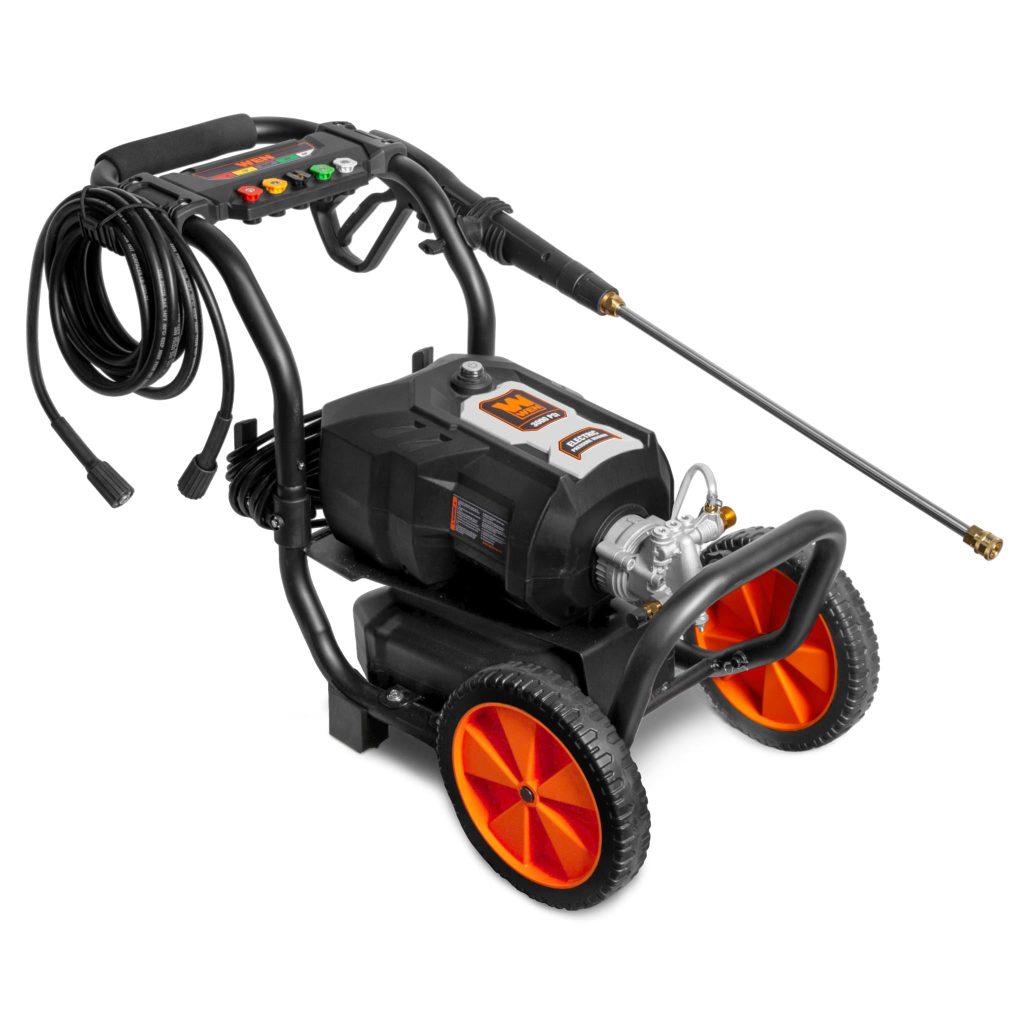

  WEN PW3000E 3000 PSI Brushless Electric Pressure Washer, 2.0 GPM with Onboard Detergent Tank Online Hot Sale
